Adjustable Triangle Solar Panel Bracket System

Oct 19, 2023
solar ground mount system



AdjustableTriangle Solar Panel Bracket System with a foldable and adjustable design saves a lot on installation and transportation. It can be installed directly on rooftop, ground or pre-made cement blocks as your option. All panels are suitable and easy&fast installation will gain a lot for your project.

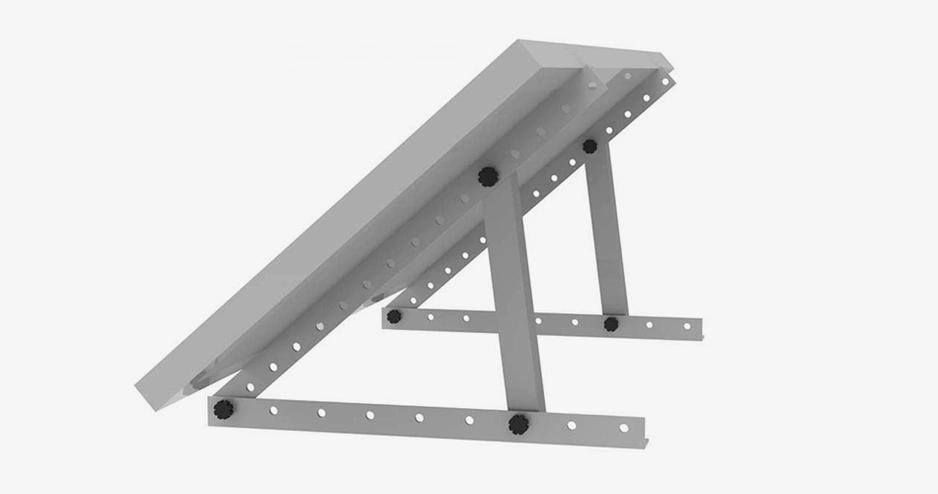

Adjustable ballast solar panel support

  Advantage 优势

01
 Easy Installation

AdjustableTriangle Solar Panel Bracket System has greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

02
 Great Flexbilitity

Adjustable Triangle Solar Panel Bracket System has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

03
 High Accuracy


Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

04
 Maximum Lifespan

All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

05
 Guaranteed Durability

Powerstone Solar provides a guarantee of 10 years on the durability of all components used.

Specification





lnstall Site



Flat Roof & Open Field



Tilt Angle



0 deg- 45 deg



Module W Length



Up to 1.2m



Max Wind Speed



Up to 60m/s



Snow Load



Up to1.4KN/m2



standards



AS/NZS 1170 & DIN 1055 & Other



Material



Aluminum alloy & Stainless steel



Color



Sliver or Black



Warranty



Ten years warranty



Duratiom



More than 20 years

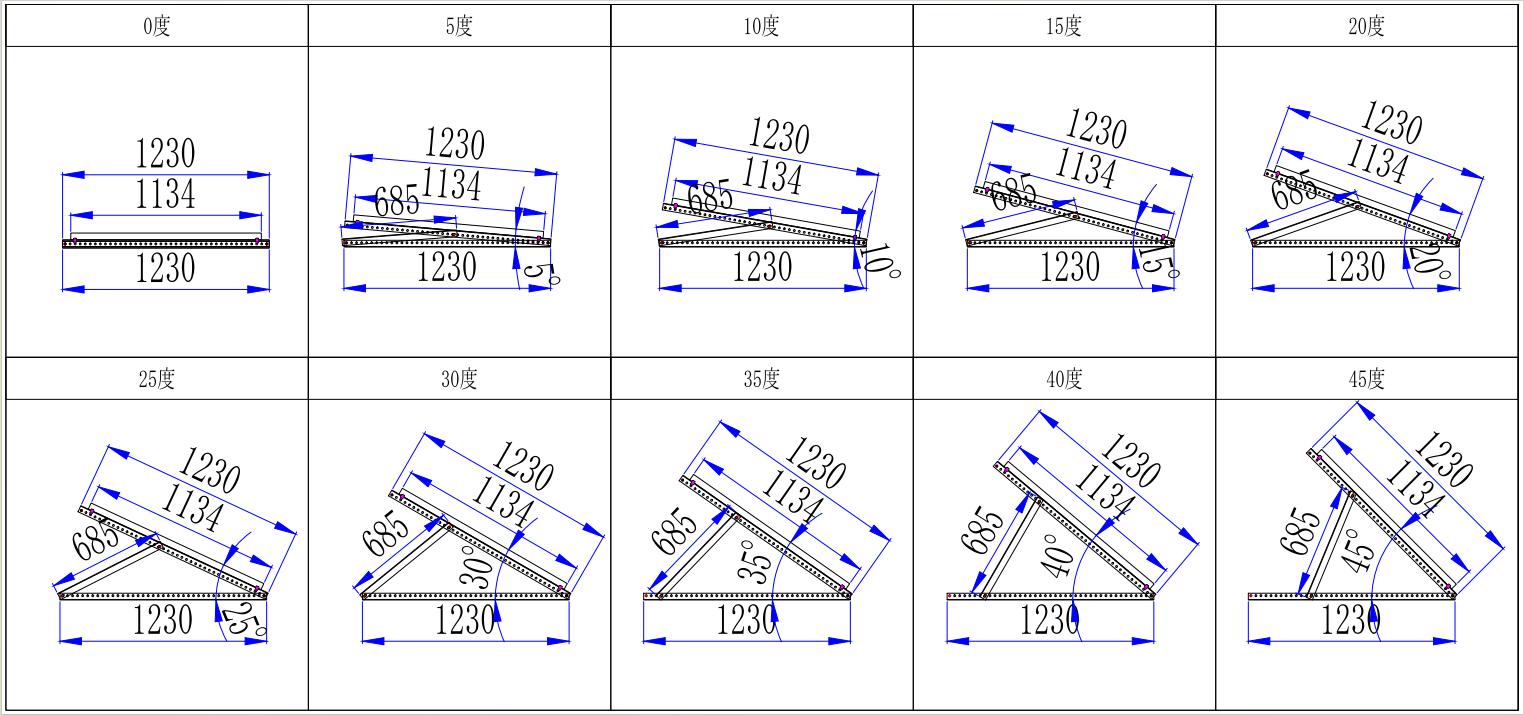

Drawing Example



Adjustable tilt ballast solar mount
