Asphalt Roof Solar Mounting

Mar 23, 2023

There is a way to make the roof work properly and save money-rooftop solar system. With the development of the solar energy industry over the years, more and more people choose to DIY their houses, which is a very cost-effective investment.

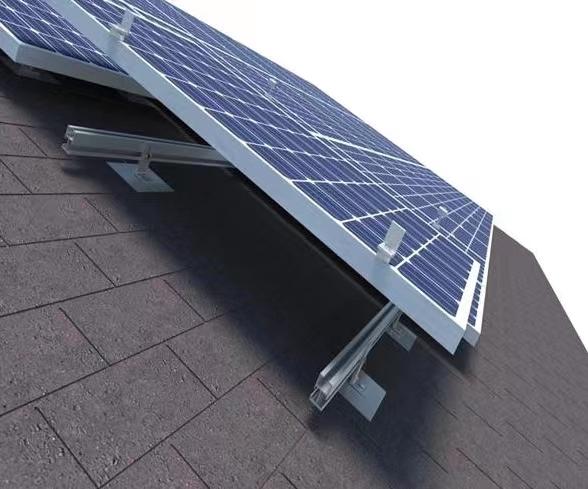

In this regard, Power Stone designs some Asphalt Roof Solar Mounting also called pitched roof solar panel mounts) (shingle roof mounting rack),which is widely applied for asphalt shingle roof (pitched roof). Solar asphalt shingle mounts is a breakthrough in the roof installation system, which solves a series of problems of asphalt shingle roof installation.

solar roof



01







Hooking solutions for asphalt roofs

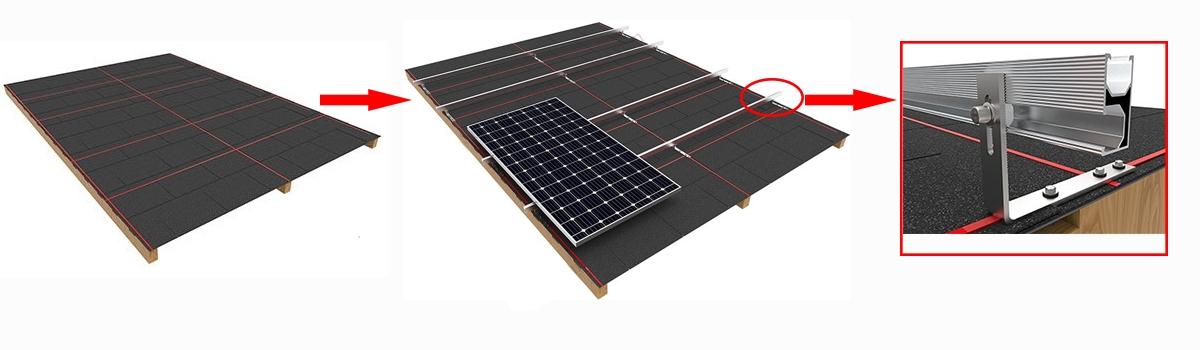

①Use screws ST6.3*80mm to nail the flat tile roof hooks to the asphalt roof beam.

Aluminum rails are secured to the roof with asphalt shingle hooks.

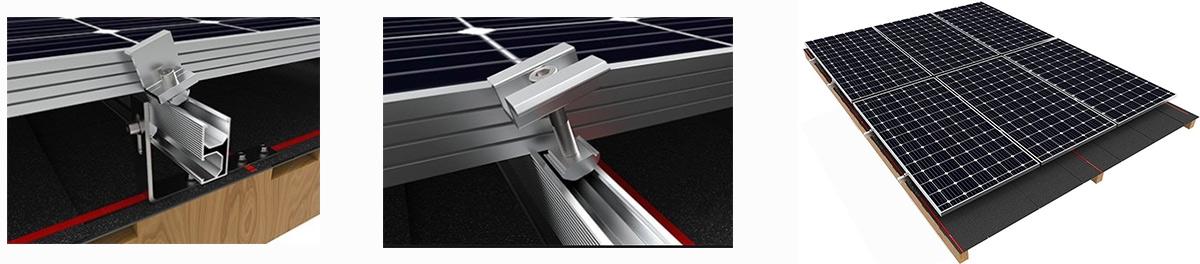

The solar panel is installed on the aluminum rail, using the middle clamp and the end clamp to fix it.



solar panel L feet mount
solar roof



02

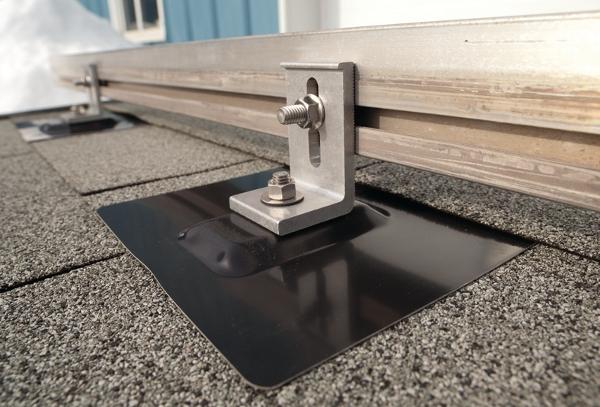

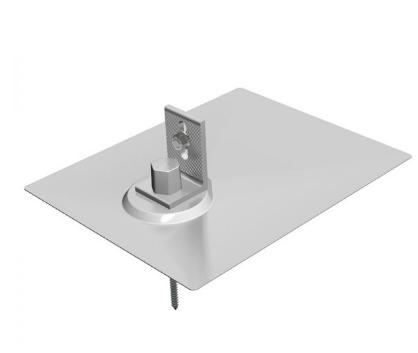

Asphalt Tile Roof Flashing Hook L Feet

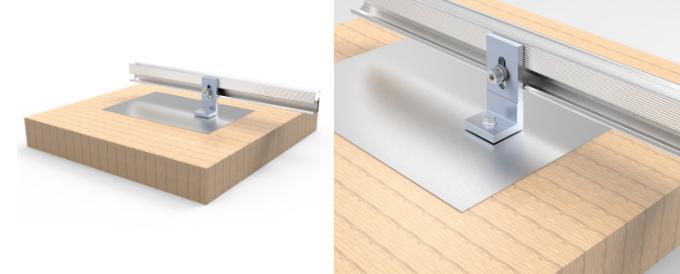

The flashing plate with raised tapered hole, together with rubber pad can perfectly cooperate with L feet, which has good waterproof foundation.

The flashing material is Aluminum 6005-T5, and the screw will depend on the steel beam or wooden beam.



L bracket solar module mounting



solar tile hook mount
pitched roof solar mount



Features



☆ Easy Installation——L feet will be fixed on steel or wooden purlin directly.

☆ Great Flexibility——The flashing direction can be adjusted according to the single roof.

☆ Waterproofing——The flashing and rubber pad can perfectly prevent water.

☆ Pre-assembled components——highly save the labor cost at your installation site.



roof tile solar panel hooks



roof tile solar hook brackets
solar hooks for tile roof installation

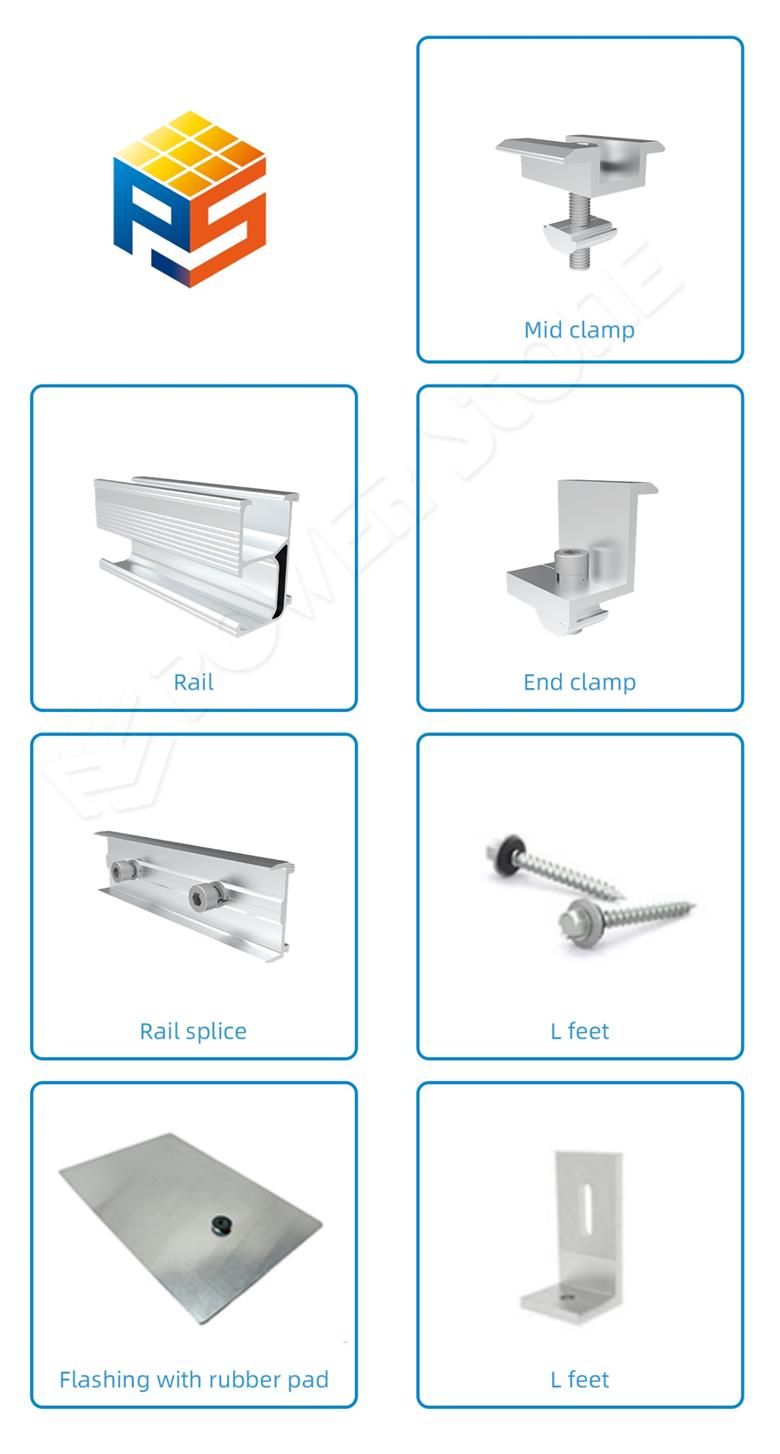

Component&Installation



solar hooks for tile roof installation



The asphalt shingle solar mounting system is easy to install and has high safety. Power Stone offers a one-stop solution for your solar project needs. Welcome for more inquiries for the solar mounting system!
