Non-penetrating Ballast Mounting System for Flat Roof

Jan 20, 2023





Non-penetrating Ballast Mounting System for Flat Roof

Solar Roof Mounting

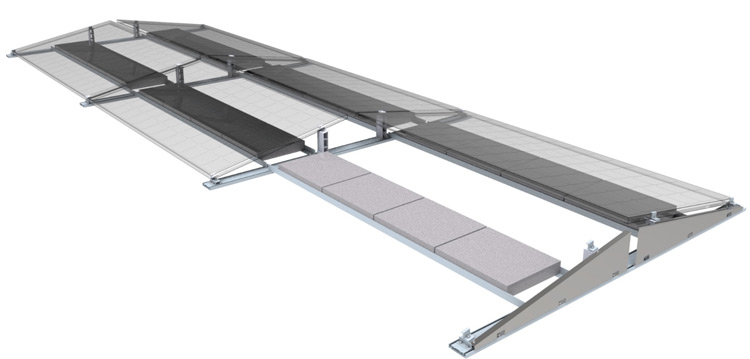

Unlike solar mounting systems that penetrate the roof, ballast solar mounting systems can be placed directly on flat rooftop. They use concrete blocks weight to hold the arrays in place. However, this solar racking system can be installed if your flat roof have sufficient load capacity. In addition, for some places with relatively high wind speed, the concrete blocks should be heavier to ensure the stability and safety of the solar array.



Brief Introduce
Feature

Light Weight, Convenient and Durable.

Install Site:

Flat Concrete Roof or Open Filed

Installation Angle

10°

Max Wind Speed

60 m/s

Snow Load

1.4 KN/m

Material

Al600

Warranty

10 years

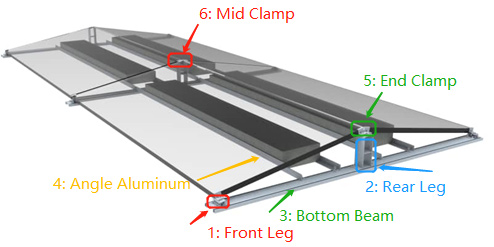

Components List



solat flat roof



Solar Roof Mounting

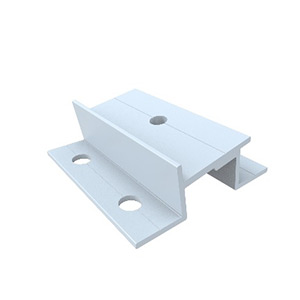

①  Front Leg

solat flat roof

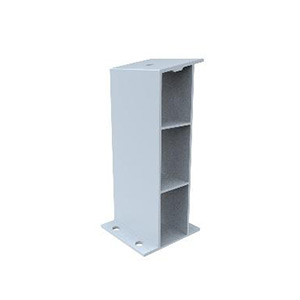

②  Rear Leg





Solar Roof Mounting

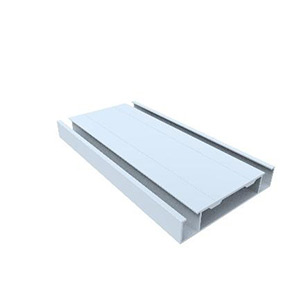

③  Bottom Beam

solat flat roof

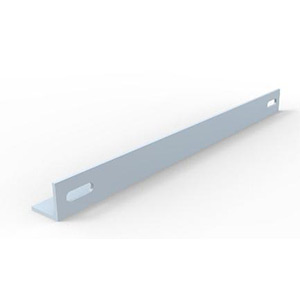

④  Angle Aluminum

Solar Roof Mounting

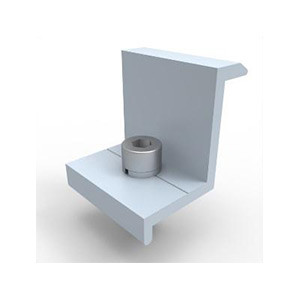

⑤  End Clamp

solat flat roof

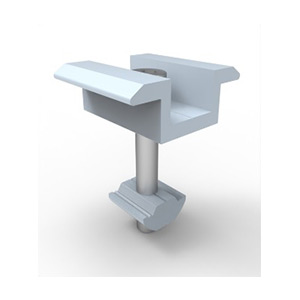

⑥  Mid Clamp



The benefits of non-penetrating solar mounts



1. It is easier to install the ballasted solar racking system.

2. No drilling to roof makes your roof immune to the water leaks.

3. It requires less maintenance cost compared to the drilling roof mounts. Because for drilling solar racking, not only the solar panels, but also the roof need to maintain in periodic time.

The drilling free solar mounting system is a great method to mount for flat roof, especially in a waterproof situation. The well-constructed bracket can elevate the solar panel to provide the optimal height, so that there is a proper distance between the panel and the roof surface, ensuring that the panel can circulate air even at high temperatures, without heat, and prolonging the service life of the components. Welcome for more inquiries for the solar mounting system!
